Electromagnetic Flow Meter
Premium filtration solutions for industrial and commercial applications
About Electromagnetic Flow Meters
At Avant Tech, we are proud to partner with Flometriq Hydronett, a globally recognized manufacturer of high-performance Electromagnetic Flow Meters (EMF), to provide reliable and accurate flow measurement solutions for conductive liquids across a wide range of industrial applications. Manufactured to international standards, these flow meters are trusted in projects across the GCC, USA, Europe, and Southeast Asia.
Based on the proven principle of electromagnetic induction, Flometriq Hydronett flow meters deliver high accuracy, zero pressure loss, and long-term reliability. With no moving parts and low maintenance requirements, they are available in various sizes, liner materials, and construction options to suit diverse operating environments.
Through this partnership, Avant Tech offers dependable flow measurement solutions for Water & Wastewater Treatment, HVAC, Fire Protection, Power Generation, Desalination, Infrastructure, and Process Industries. Backed by over 50 years of engineering expertise, Flometriq Hydronett products provide the performance, quality, and value trusted by industries worldwide.

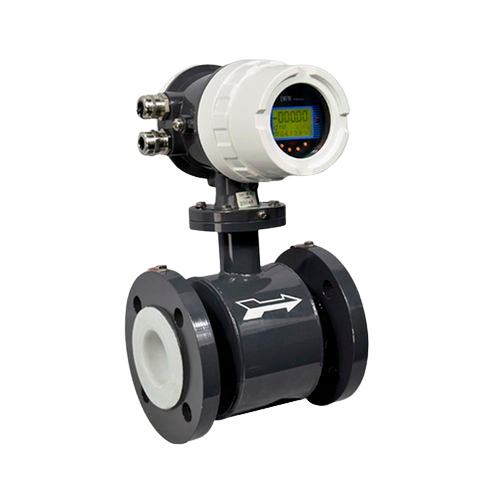

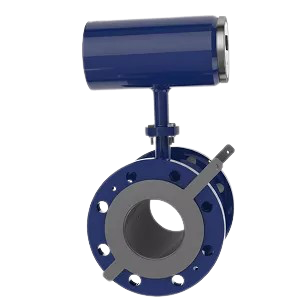

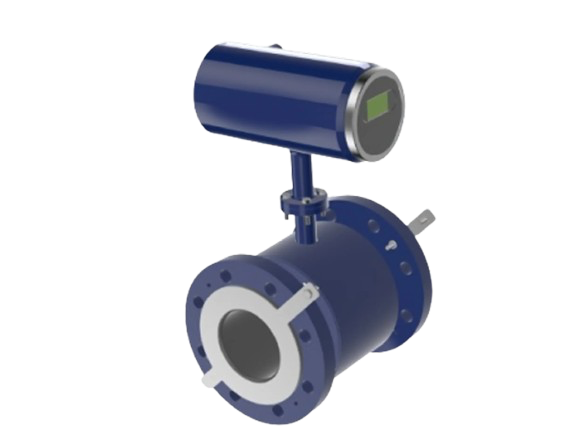

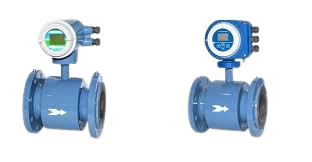

Available Models
Choose from our comprehensive range of electromagnetic flow meter models
Specifications & Details
Comprehensive information about our electromagnetic flow meter systems
1Specifications
- ▪Measurement Principle: Electromagnetic (Faraday’s Law)
- ▪Nominal Sizes: DN 50 to DN 600
- ▪Accuracy: ±0.5% (up to ±0.2% with multipoint calibration)
- ▪Flow Velocity Range: 0.1 to 5 m/s
- ▪Low Flow Measurement: As low as 0.01 m/s
- ▪Fluid Conductivity: ≥ 20 µS/cm
- ▪Operating Pressure: 1 to 5 bar
- ▪Operating Temperature: Rubber Lining: up to 55°C, PTFE Lining: up to 150°C
- ▪Power Supply: 90–270 VAC, 50 Hz (protected up to 440 VAC)
2Applications
- ▪Water & Wastewater Treatment Plants
- ▪Municipal Water Supply
- ▪Fire Protection & Fire Water Systems
- ▪Power Plants
- ▪Chemical & Process Industries
- ▪Utilities & Infrastructure Projects
- ▪Cooling Water & Utility Lines
3Body Material
- ▪Sensor Housing: Stainless Steel (SS 304)
- ▪Measuring Tube: Stainless Steel (SS 304)
- ▪Flanges:Carbon Steel Gr. A105 (Standard),Stainless Steel (Optional)
4Liner Material
- ▪Rubber
- ▪PTFE
- ▪Polyurethane (Optional)
5Electrode Material
- ▪SS 316 (Standard)
- ▪Hastelloy C (Optional)
- ▪Titanium (Optional)
- ▪Tantalum (Optional)
6End Connections
- ▪Flanged – FF / RF
7Features
- ▪No moving parts – zero pressure loss
- ▪High accuracy and repeatability
- ▪Digital Signal Processor (DSP)–based electronics
- ▪Bidirectional flow measurement (forward & reverse)
- ▪Built-in empty pipe detection
- ▪Open / short coil alarms
- ▪Low flow, peak flow & leak detection alarms
- ▪Built-in real time clock (RTC)
- ▪Inbuilt data logger (select models)
- ▪Suitable for continuous operation and intermittent service conditions
- ▪IP68 rated (sensor)
8Connection Standards
- ▪ANSI / ASME B16.5
- ▪ISO 7005
- ▪EN 1092-1
- ▪BS 4504
9Outputs & Communication
- ▪Isolated 4–20 mA Analog Output
- ▪Pulse Output (Open Collector)
- ▪Isolated RS485 / MODBUS
- ▪Programmable Relay Outputs (up to 2)
- ▪Optional Communication:GSM 2G / 3G / 4G, NB-IoT, LoRa, Wireless Mesh, Wi-Fi, Bluetooth BLE
10Mounting & Installation
- ▪Inline installation
- ▪Horizontal or vertical mounting
- ▪Minimum straight pipe length:Upstream ≥ 5D, Downstream ≥ 2D
- ▪Full pipe condition required
11Enclosure & Protection
- ▪Field-mounted or remote-mounted transmitter
- ▪Sensor protection: IP68
- ▪Remote electronics: IP66 / IP67
12Outputs & Communication
- ▪Factory calibrated
- ▪NABL-accredited flow calibration facility
- ▪Calibration traceable to national standards
- ▪Supplied with calibration certificate
Why Choose Avant Tech Electromagnetic Flow Meters?
Industry-leading expertise and exceptional service quality
State-of-the-Art Facility with In-House Pressure Drop Testing
At Avant Tech we partner with Flometriq Filtration, which operates from a 45,000 sq.ft. world-class combined manufacturing and testing facility equipped with advanced machinery and instrumentation. Our in-house Pressure Drop Testing Lab ensures every strainer is validated for maximum efficiency and reliability under real-world conditions.
Expert Design Team with 30+ Years of Experience
At Avant Tech we partner with Flometriq Filtration, a trusted basket type strainer manufacturer, our design team brings over four decades of expertise in creating innovative and reliable filtration solutions. Whether it's a standard model or a customized design, our team ensures every solution meets the highest industry standards for quality and efficiency.
Exceptional After-Sales Support
Our commitment to customer satisfaction goes beyond delivery. With a dedicated support team, we provide guidance on installation, maintenance, and troubleshooting to ensure the long-term performance of your equipment.
Prompt Delivery
As a leading supplier, we understand the importance of timely delivery for industrial operations. With standard models in stock and an efficient supply chain, we ensure your orders are delivered on time, every time.
Manufacturing Facility Gallery
Explore our state-of-the-art manufacturing facility
Ready to Find the Perfect Electromagnetic Flow Meter?
Contact our mechanical engineering team to discuss your filtration requirements and get a customized solution.
