Suction Diffuser
Premium filtration solutions for industrial and commercial applications
About Suction Diffuser
Flometriq is a globally recognized manufacturer and exporter of high-performance Suction Diffusers, engineered to provide optimal flow conditioning and debris removal at pump inlets, ensuring reliable pump performance and extended equipment life. Manufactured in India to meet international engineering standards, our Suction Diffusers are supplied to critical industries across the GCC, USA, Europe, and Southeast Asia.
Designed to combine filtration and flow straightening, Flometriq’s Suction Diffusers effectively remove debris while promoting uniform flow, minimizing pump cavitation, and enhancing overall system performance. Available in Stainless Steel, Carbon Steel, Duplex, Super Duplex, and other corrosion-resistant alloys, our Suction Diffusers are built for long-term reliability in demanding process environments.
Ideal for use in HVAC, Power Generation, Water Treatment, Desalination, Oil & Gas, and Industrial Process applications, our Suction Diffusers are a key component for pump protection and system efficiency.
With over five decades of engineering experience and global export capabilities, Flometriq is the trusted Suction Diffuser partner for EPC contractors, utilities, and plant operators in the UAE, Saudi Arabia, Oman, Kuwait, Qatar, Bahrain, Singapore, Malaysia, Europe, and the USA.
Available Models
Choose from our comprehensive range of Suction Diffuser models
Specifications & Details
Technical specifications of our Suction Diffuser models

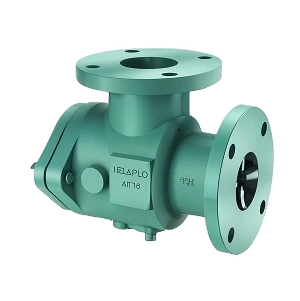

Suction Diffuser
| Feature | Description |
|---|---|
| Body Material | Cast Iron (ASTM A126-B) |
| Cover | Cast Iron with Buna-N O-ring seal |
| Strainer | 1/8″ perforated SS316 plate + 20-mesh SS304 start-up screen |
| Flow Straightener | Integrally cast vanes for turbulence reduction |
| Connections | ANSI/ASME B16.1 Class 125 flanged, sizes 2″–12″ |
| Orientation | Horizontal or vertical pump suction |
| Drain Plug | Standard bottom flange-mounted drain |
| Mounting Pads | Cast-on saddle pads; support foot for piping load |
| Pressure Rating | Up to 200 psi |
| Temperature | Up to 400°F (205°C) |
| Open Area Ratio | Approx. 3–6× nominal outlet pipe area |
| Start-up Screen | Removable 20-mesh liner for commissioning |
| Weight | Ranges from ~19 lb (2″×1¼″) to ~400 lb (12″×12″) |

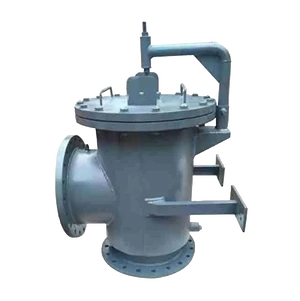

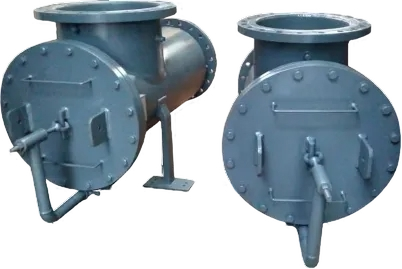

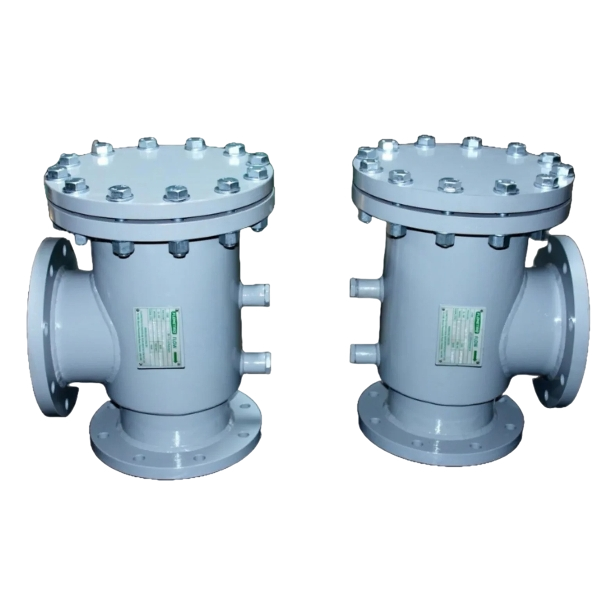

SD-FA Series
| Feature | Description |
|---|---|
| Body Material | Fabricated Carbon Steel; optional Stainless/Duplex |
| Cover | Fabricated with through-bolts and an O-ring seal |
| Strainer Element | Perforated or mesh liner (SS options), start-up screen as needed |
| Flow Straightening | Internal vanes providing 1 to 5 pipe diameters of flow conditioning |
| Connections | ANSI flanged, threaded, or custom |
| Pressure Rating | Up to 285 psi for SS / 200 psi for CS models |
| Temperature | Up to 400°F (204°C) |
| Orientation | Horizontal or vertical mount |
| Drain Plug | Included as a standard feature |
| Code Compliance | ASME B31.1 / B31.3 / VIII Div-1; CRN, TSSA on request |
Applications of Suction Diffusers
Pump Inlet Protection
Prevents scale, rust flakes, weld slag, and foreign matter from entering pumps, ensuring longer bearing and seal life.
Flow Conditioning in Tight Spaces
Replaces long inlet runs and elbows with a single device that straightens and aligns flow, reducing cavitation and turbulence.
HVAC & Building Services
Installed in chilled water, condenser water, or boiler feed systems to ensure consistent flow to pumps with minimal installation footprint.
Water & Wastewater Treatment
Used in raw water intake, filtration pre-feed, and process pumping systems to protect rotating equipment from suspended solids.
Fire Protection Systems
Installed before the jockey or main fire pumps to maintain high reliability with minimal clogging risk.
Chemical, Process & Utility Lines
Protects pumps in chemical dosing or industrial utility systems where reliability and uptime are critical.
Why Choose Avant Tech Suction Diffuser?
Industry-leading expertise and exceptional service quality
State-of-the-Art Facility with In-House Pressure Drop Testing
At Avant Tech we partner with Flometriq Filtration, which operates from a 45,000 sq.ft. world-class combined manufacturing and testing facility equipped with advanced machinery and instrumentation. Our in-house Pressure Drop Testing Lab ensures every strainer is validated for maximum efficiency and reliability under real-world conditions.

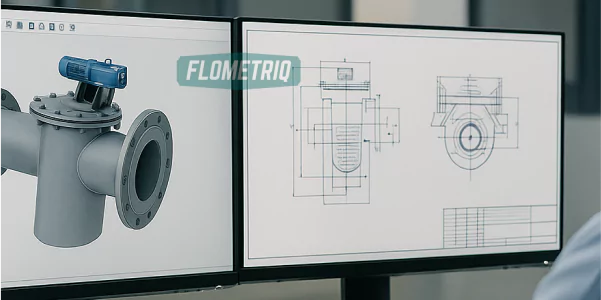

Expert Design Team with 30+ Years of Experience
At Avant Tech we partner with Flometriq Filtration, a trusted basket type strainer manufacturer, our design team brings over four decades of expertise in creating innovative and reliable filtration solutions. Whether it's a standard model or a customized design, our team ensures every solution meets the highest industry standards for quality and efficiency.
Exceptional After-Sales Support
Our commitment to customer satisfaction goes beyond delivery. With a dedicated support team, we provide guidance on installation, maintenance, and troubleshooting to ensure the long-term performance of your equipment.

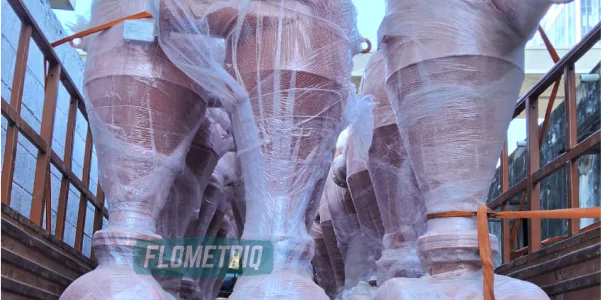

Prompt Delivery
As a leading supplier, we understand the importance of timely delivery for industrial operations. With standard models in stock and an efficient supply chain, we ensure your orders are delivered on time, every time.

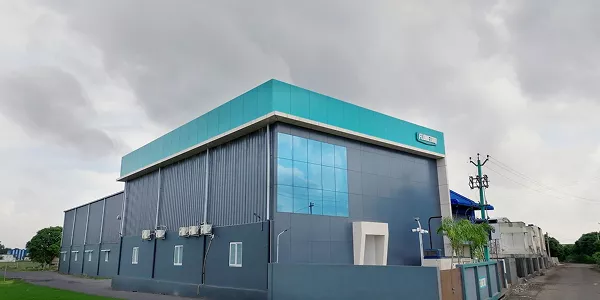

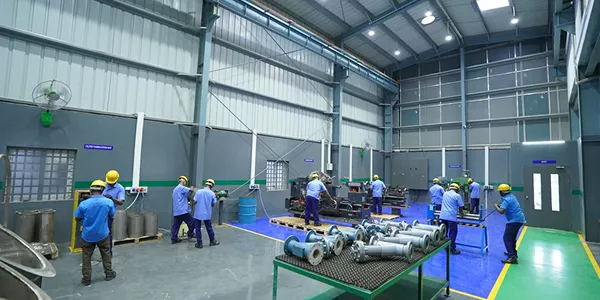

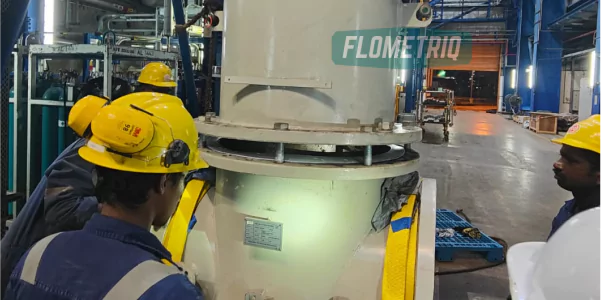

Manufacturing Facility Gallery
Explore our state-of-the-art manufacturing facility
Ready to Find the Perfect Suction Diffuser?
Contact our mechanical engineering team to discuss your filtration requirements and get a customized solution.
